Cruise 4.0 with Tiller

For dinghies and sailboats up to 4 tons

Torqeedo Cruise 40 T Torqeedo Cruise 40 T
  • Torqeedo Cruise 40 T
  • Torqeedo Cruise 40 T
  • Torqeedo Cruise 40 T
  • Torqeedo Cruise 40 T
  • Torqeedo Cruise 40 T
  • Torqeedo Cruise 40 T
  • Torqeedo Cruise 40 T
  • Torqeedo Cruise 40 T
  • Torqeedo Cruise 40 T
  • Torqeedo Cruise 40 T
  • Torqeedo Cruise 40 T
  • Torqeedo Cruise 40 T
  • Torqeedo Cruise 40 T
  • Torqeedo Cruise 40 T
  • Torqeedo Cruise 40 T
  • Torqeedo Cruise 40 T
  • Torqeedo Cruise 40 T
  • Torqeedo Cruise 40 T

The new models of the Cruise 4.0 have been improved to meet the demanding challenges of everyday commercial use; making them ready to take on the harshest environmental conditions, for example with dinghies and sailboats up to 4 tons.

This makes the Cruise even more rugged in the event that it runs aground and even better protected against corrosion when used extensively in salt water.

The Cruise 4.0 is comparable to an 8 HP petrol outboard and can be easily mounted on your boat with a couple of tools, regardless of whether the remote or tiller version.

A power supply from at least two lithium batteries (Power 26-104) or with lead batteries (lead-gel or AGM) must be provided for operation.

The on-board computer display provides information on the most important performance data.
Available with short or long shaft – as you need.
Impact-resistant aluminium fin coated in polyurethane foam
Rugged: aluminium housing with shaft sealant rings on the inside
Optimised propeller design: For greater thrust or more speed
The on-board computer display provides information on the most important performance data.
Available with short or long shaft – as you need.
Impact-resistant aluminium fin coated in polyurethane foam
Rugged: aluminium housing with shaft sealant rings on the inside
Optimised propeller design: For greater thrust or more speed
The on-board computer display provides information on the most important performance data.
Available with short or long shaft – as you need.
Impact-resistant aluminium fin coated in polyurethane foam
Rugged: aluminium housing with shaft sealant rings on the inside
Optimised propeller design: For greater thrust or more speed

Cruise 4.0 T –
Benefits:

  • High-efficiency outboard with 4,000 W input power, equivalent to an 8 HP petrol outboard.
  • We recommend the Cruise 4.0 for dinghies and sailboats up to 4 tons.
  • This model is equipped with tiller control.
  • Rugged aluminium pylon with reinforced fin – extra robust even when running aground.
  • Shaft sealant rings mounted in protected area on the inside of the pylons.
  • Highest-grade seawater-proof aluminium (AlMgSi1), hard-anodized for long service life, even in the harshest conditions.
  • Lubricant-free polymer plain bearings protect against damage from fishing lines or debris and provide improved mechanical support for propeller shaft – wear-resistant and maintenance-free.
  • Comprehensive galvanic corrosion protection through careful matching of all materials and meticulous isolation of materials with different electrochemical properties.
  • Aluminium fin coated in polyurethane foam provides additional protection from impact when running aground.
  • Everything is waterproof to IP67.

Cruise 4.0 T –
Benefits:

  • High-efficiency outboard with 4,000 W input power, equivalent to an 8 HP petrol outboard.
  • We recommend the Cruise 4.0 for dinghies and sailboats up to to 4 tons.
  • This model is equipped with tiller control.
  • Rugged aluminium pylon with reinforced fin – extra robust even when running aground.
  • Shaft sealant rings mounted in protected area on the inside of the pylons
  • Highest-grade seawater-proof aluminium (AlMgSi1), hard-anodized for long service life, even in the harshest conditions
  • Lubricant-free polymer plain bearings protect against damage from fishing lines or debris and provide improved mechanical support for propeller shaft – wear-resistant and maintenance-free.
  • Comprehensive galvanic corrosion protection through careful matching of all materials and meticulous isolation of materials with different electrochemical properties.
  • Aluminium fin coated in polyurethane foam provides additional protection from impact when running aground.
  • Everything is waterproof to IP67.

Cruise 4.0 with 2 x Power 26-104

Alternative: 4 x 12 V / 200 Ah AGM Batteries



Speed in knots (km/h)* Range in sm (km)* Running time in hours:
Slow 2.7 (5.0) 29 (54) 10:45
Full throttle 7.0 (13) 8 (15) 01:10

* Depends on type of boat, load, propeller and conditions. Speed and range indications do not represent a legal guarantee.

Light boats can reach planing speeds up to 15 knots (28 km/h). The use of a twin motor (Twin Cruise 4.0) allows planing on some boats.

Range Information

When travelling through water, displacement increases power required in proportion to the cube (third power) of the speed. This means that doubling water speed increases the power required eightfold.

Conversely, it of course also means that only a slight reduction in speed will increase the range attainable significantly. Simply reducing speed by e.g. half a knot has a considerable effect on the remaining range.

Since mental arithmetic to the power of three is quite tricky, the on-board computer of the Cruise constantly calculates the remaining range for you. To do this, it combines the consumption data from the motor with the charge level of the batteries together with the speed over water obtained via GPS. This means you can read the remaining range in real time from the Cruise's display. Using the TorqTrac App you can even read the remaining range from a map on your smartphone.

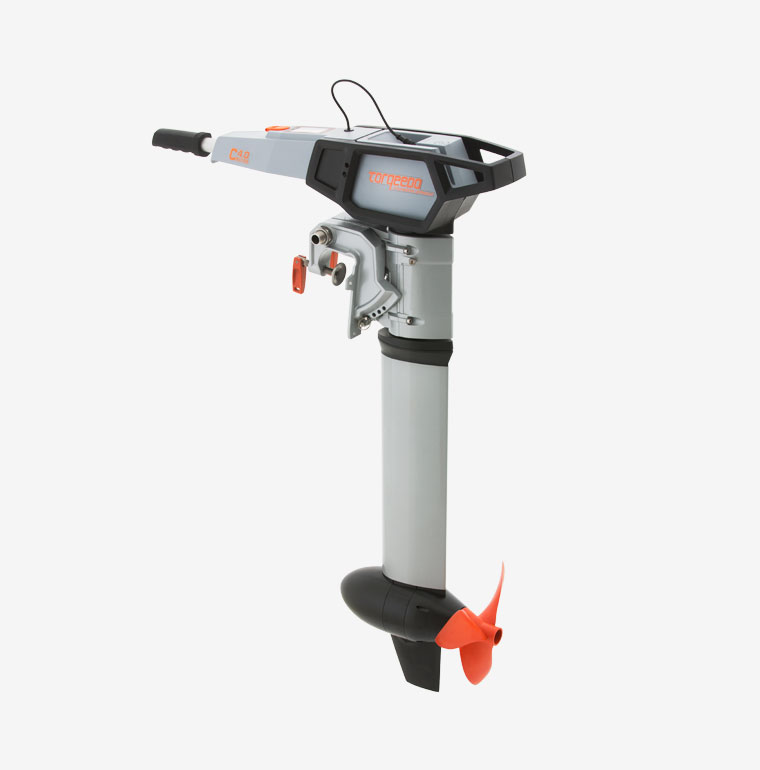

Torqeedo Cruise 4.0 T
The impressive new Cruise

Greater Staying Power

You can choose accessories to extend the range

Technical Data Cruise



Cruise 4.0 T
Input power in watts 4000
Propulsive power in watts 2240
Comparable petrol outboards (propulsive power) 8 HP
Comparable petrol outboards (thrust) 9.9 HP
Maximum overall efficiency in % 56
Static thrust in lbs* 189
Integrated battery -
Nominal voltage 48
Final charging voltage -
Total weight in kg 18.3 (S) / 19.4 (L)
Motor weight without battery in kg -
Weight of integrated battery -
Shaft length in cm 62.5 (S) / 75.5 (L)
Standard propeller
v = speed in km/h at p = power in watts
v19/p4000
Alternative propeller options v30/p4000, v8/p350
Maximum propeller speed in rpm 1300
Control Tiller
Steering 360° lockable
Tilting device Manual with grounding protection
Tilt angle 61,3°
Trim device Manual, 4-step
Integrated on-board computer Yes
Stepless forward/reverse drive Yes
* Torqeedo static thrust measurement is based on internationally accepted ISO standards. Static thrust figures for conventional trolling motors are typically measured differently, which results in higher values. To compare Torqeedo static thrust data with conventional trolling motors, add approximately 50% to the Torqeedo static thrust values.

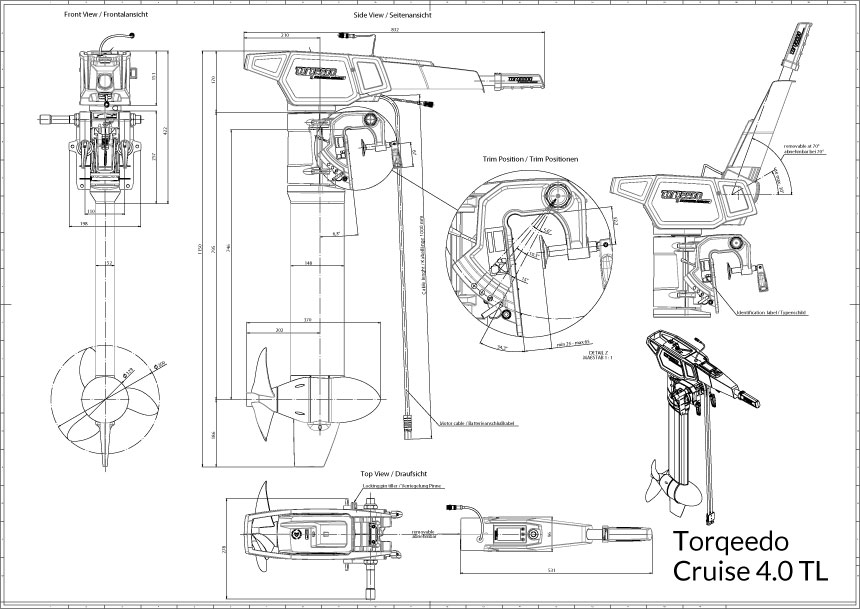

Cruise 4.0 T Dimensions

Cruise 4.0 T

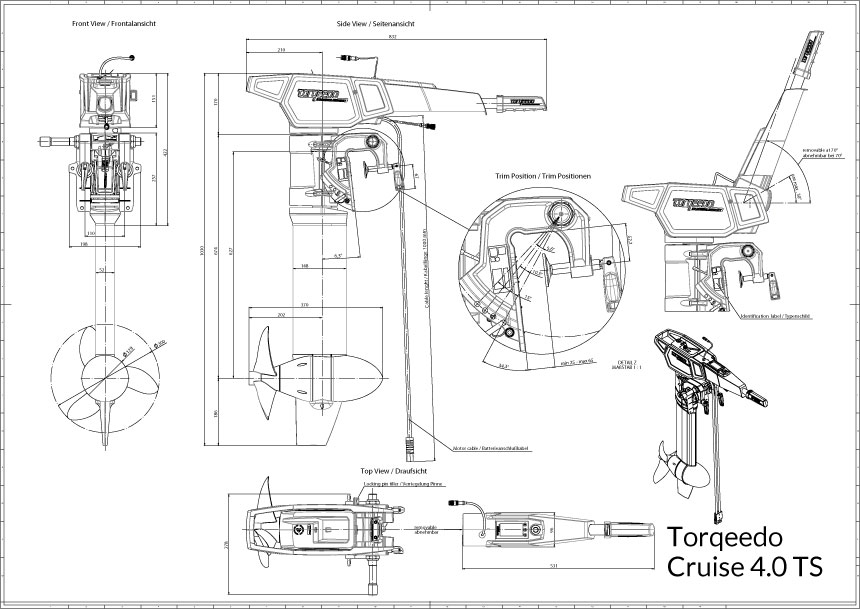

Technical Drawing

Download

Cruise 4.0 T

Technical Drawing

Download

Cruise T Video Clip

Torqeedo Cruise T

Learn about the benefits of our Cruise motor for yourself.

Cruise 4.0 T FAQ

  • Which Cruise for which boat?

    All Cruise models are suitable for inflatables and other small boats.

    For dinghies and sailboats up to 3 tons, we recommend the Cruise 2.0. The Cruise 4.0 easily propels up to 4 tons.

  • Is the on-board computer compatible with my lead batteries?

    Yes, but with limitations.

    If the Cruise is operated with lead batteries the charge status indicator (and with it the remaining range indicator) is based on estimates derived from battery information entered during initial motor setup.

  • What are the advantages of the Power 26-104 lithium battery for the Cruise?

    As a lithium battery, the Power 26-104 provides far greater performance with lower weight than conventional lead batteries. In other words, it does not weigh down your boat unnecessarily – and you benefit in terms of range and power.

    Additionally, the integrated battery electronics of the Power 26-104 are designed to communicate with the on-board computer, meaning that the values provided by the battery such as remaining range and capacity are always exact.

  • What does the on-board computer do?

    The on-board computer, which is integrated in the remote throttle with the Cruise R and in the tiller with the Cruise T, analyses information from the motor and combines it with GPS data.

    Motor consumption and GPS speed are always exact.

    When the Cruise is operated with the Power 26-104, the information on the battery and on range with remaining capacity is also exact because both products communicate with each other. That is very convenient.

  • What requirements must my boat meet for twin motors – the Twin Cruise?

    A Twin Cruise outboard system consists of two Cruise models (2.0 R or 4.0 R) and the Twin Cruise extension set, which contains a dual throttle and tie bar

    The tie bar is used to connect the two Cruise outboards to the same steering mechanism.

    The standard Twin Cruise mounting assumes a transom width of at least 76 cm

  • What is the warranty on the Cruise?

    The Cruise models have 2-year warranty from the date of purchase for non-commercial use.

Additional Information

You can find tips on the Cruise here

Cruise 4.0 TS

Item number: 1236-00  | EAN: 4260113693278
  • Improved robustness and improved corrosion protection
  • 4,000 W input power, in terms of propulsion is comparable with an 8-hp petrol outboard
  • Maximum efficiency outboard
  • With tiller control
  • Integrated on-board computer with GPS-based range calculation
  • 25 mm (2) cable set (3m) including fuse and main switch
  • Emergency magnetic stop key
  • Battery cable bridge for lead batteries
  • Fuse and main switch

Equipment included:

Integrated on-board computer with GPS and display, fuse and main switch, emergency magnetic stop, 25 mm2 cable set (3m), battery cable bridge for lead batteries, tiller control (Cruise T models)

Warranty:

2 years for non-commercial use

  • We currently deliver to the following countries


Length of Shaft
S
L
$ 4,298.00
plus shipping charges

Immediate shipping
Find dealer
