Deep Blue 100i 900
For large sailing yachts, heavy displacement vessels and commercial operators





Deep Blue 100i 900

For large sailing yachts, heavy displacement vessels and commercial operators




Product description


  • Inboard system with power electronics and 900 rpm for displacement sailing
  • This new addition to the Deep Blue family delivers 100 kW of continuous, emission-free power, ultimate torque, low maintenance
  • Suitable for yachts up to 120 feet long, this robust direct-drive motor delivers the low rotational speeds necessary to efficiently power large sailing yachts and other heavy displacement vessels
  • All the components of the system are perfectly engineered to match each other and are completely waterproof
  • Electric boat propulsion is not only powerful and safe, it is also a genuine commercial alternative for heavy users
  • We provide a 9-year warranty on the Deep Blue's battery capacity
  • Including on-board computer with 5.7" touchscreen display
  • Transparent maintenance overhead An electric drive system requires far less maintenance than comparable drive systems using fossil fuel


Ordering information


  • Item number: 000-01059
  • Warranty: 2 years on the system for non-commercial use; 9-year warranty on the battery
  • California residents please click here for Prop 65 warning






  • Deep Blue 100i 900 rpm

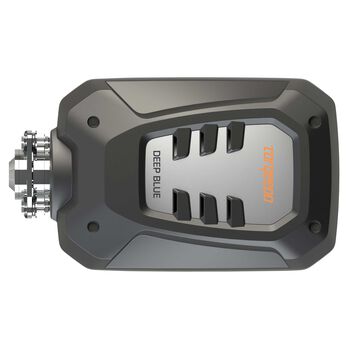

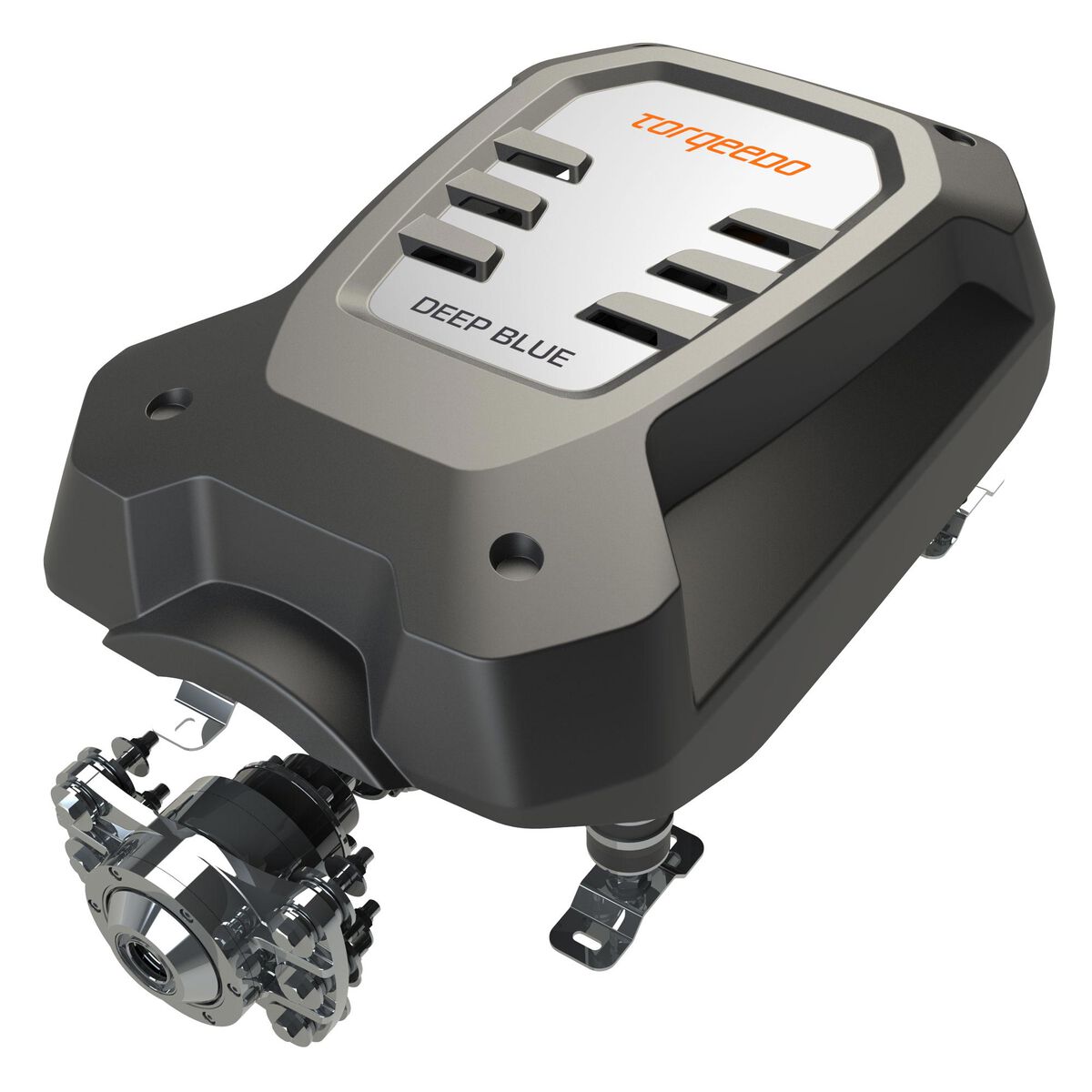

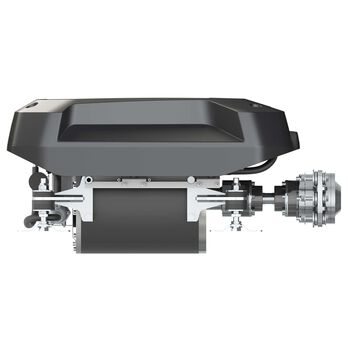

    Torqeedo Deep Blue 100i 900rpm inboard motor Torqeedo Deep Blue 100i 900 rpm inboard motor

    Suitable for yachts up to 120 feet long, this robust direct-drive motor delivers the low rotational speeds necessary to efficiently power large sailing yachts and other heavy displacement vessels. This new addition to the Deep Blue family delivers 100 kW of continuous, emission-free power, ultimate torque, low maintenance and is powered by high-capacity batteries with technology by BMW i.

    It is not just power and performance that make Deep Blue the first of its kind. It is unparalleled performance combined with full system integration and groundbreaking safety levels that set Deep Blue apart from all other electric propulsion systems on the market.

    All the components of the system are perfectly engineered to match each other and are completely waterproof. State-of-the art monitoring technology with pilot lines and insulation monitors safeguard the high-voltage system against the risk of short circuits. The same high-performance lithium batteries used to power cars also power Deep Blue – after we developed them further for use in boats. These and many more safety and performance features make Deep Blue a unique high-voltage propulsion system for electric boats.

    And if that's not enough – we provide a 9-year warranty on the Deep Blue's battery capacity, that's right, 9 years. Electric boat propulsion is not only powerful and safe, it is also a genuine commercial alternative for heavy users in particular.


    Deep Blue 100i 900 rpm – Benefits:

    • Deep Blue: the first high-power propulsion system in serial production. A fully integrated system in which all components are designed to match each other seamlessly and to work together perfectly on the water. An overall concept that is unique in terms of safety, performance and range.
    • The Deep Blue 100i 900 rpm is the "planer" at your side.
    • Available as 100 HP equivalent depending on requirements.
    • 9-year warranty on battery bank:
      a reliable battery lifespan is key for electric boating economics. That is why the Deep Blue battery comes with a long-term battery capacity warranty: 9 years after commissioning, the batteries will still have 80 % of their original capacity, even if you use them every day.* Battery ageing is transparent and can be tracked by the user in the on-board computer at any time.
      * Adherence to warranty conditions required. See Deep Blue battery capacity warranty at www.torqeedo.com for more details.




  • Specifications

    Technical Data Deep Blue

    Deep Blue system Deep Blue 100i 900 rpm Deep Blue 100i 2500 rpm
    Maximum propeller speed in rpm 900 2’500
    Input power (peak) in kW - 110
    Input power (continuous) in kW 100 100
    Torque 1060 Nm 437 Nm
    Comparable petrol outboard (shaft power) 135 HP 135 HP
    Motor weight without battery, including electronics in kg 465 195
      BMW i3 battery
    Nominal voltage 352.3 V
    Max. continuous performance 55 kW
    Capacity 42.2 kWh
    Weight 284 kg
    Dimensions 1666 x 993 x 173 mm

    * preliminary data
