- Inboard system with power electronics and 1800 rpm for planing
- A synthesis of performance and a perfectly integrated overall system with a ground-breaking safety concept that sets Deep Blue apart from all other electric drive systems on the market
- All the components of the system are perfectly engineered to match each other and are completely waterproof
- We provide a 9-year warranty on the Deep Blue's battery capacity
- Electric boat propulsion is not only powerful and safe, it is also a genuine commercial alternative for heavy users
- Special group tariff from Pantaenius Yacht Insurance with improved insurance protection and lower premiums compared with the normal tariff for boats with other high-voltage drives
- Transparent maintenance overhead An electric drive system requires far less maintenance than comparable drive systems using fossil fuel
- Item number: 3301-00 | EAN: 4260113693438
- Equipment included: Inboard drive system (33 kW peak output, 40 HP equivalent or 66 kW peak output, 80 HP equivalent) consisting of motor including motor electronics, homokinetic joint , cooling pump
- Warranty: 2 years on the system for non-commercial use; 9-year warranty on the battery
- California residents please click here for Prop 65 warning

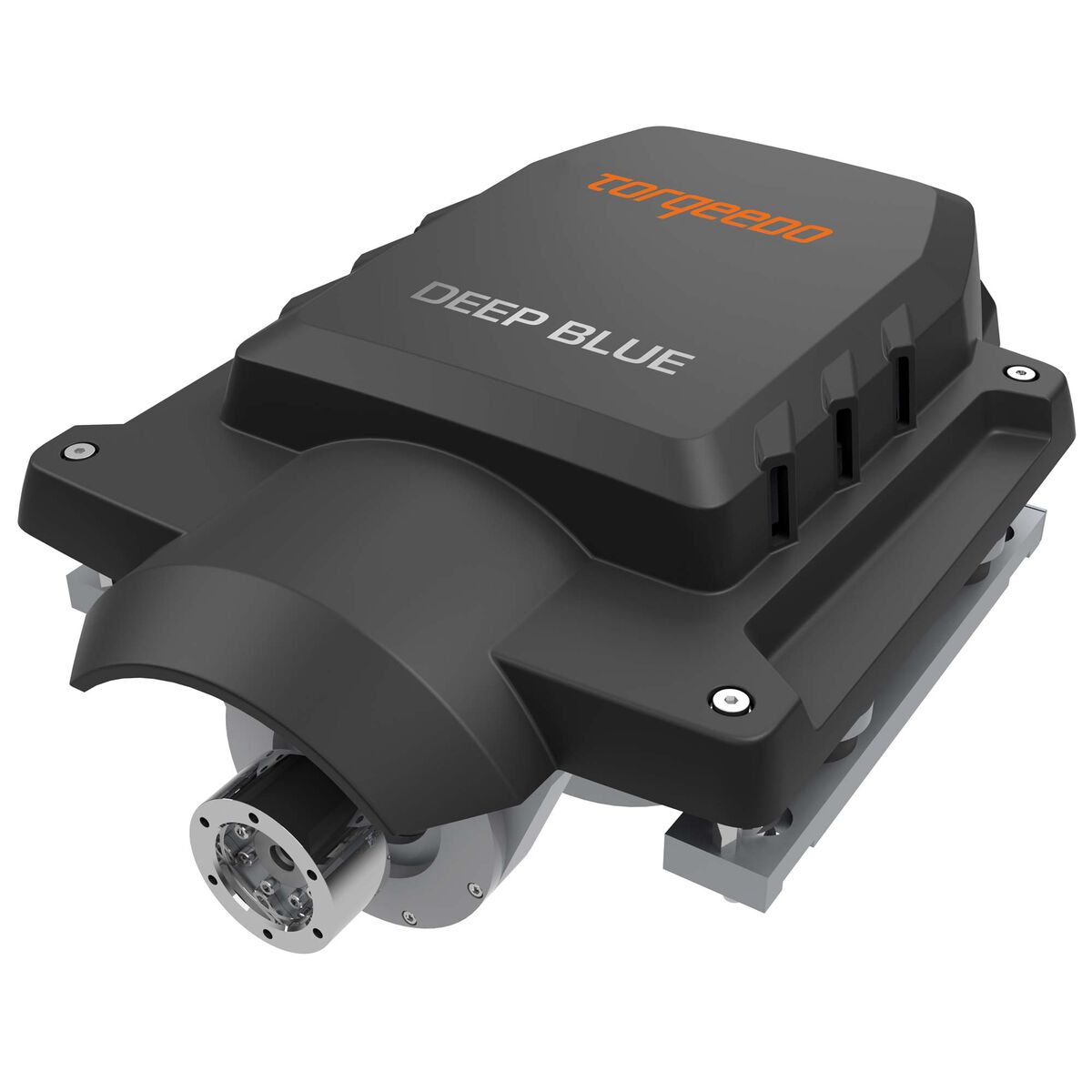

Deep Blue i 1800 rpm
It is not just power and performance that make Deep Blue the first of its kind. It is unparalleled performance combined with full system integration and groundbreaking safety levels that set Deep Blue apart from all other electric propulsion systems on the market.
All the components of the system are perfectly engineered to match each other and are completely waterproof. State-of-the art monitoring technology with pilot lines and insulation monitors safeguard the high-voltage system against the risk of short circuits. The same high-performance lithium batteries used to power cars also power Deep Blue – after we developed them further for use in boats. These and many more safety and performance features make Deep Blue a unique high-voltage propulsion system for electric boats.
And if that's not enough – we provide a 9-year warranty on the Deep Blue's battery capacity, that's right, 9 years. Electric boat propulsion is not only powerful and safe, it is also a genuine commercial alternative for heavy users in particular. Whether the 40 HP or 80 HP version – switch to full electric power!
Deep Blue i 1800 rpm – Benefits:
- Deep Blue: the first high-power propulsion system in serial production. A fully integrated system in which all components are designed to match each other seamlessly and to work together perfectly on the water. An overall concept that is unique in terms of safety, performance and range.
- The Deep Blue i 1800 rpm is the "planer" at your side.
- Available as 40 HP or 80 HP equivalent depending on requirements.
- 9-year warranty on battery bank:
a reliable battery lifespan is key for electric boating economics. That is why the Deep Blue battery comes with a long-term battery capacity warranty: 9 years after commissioning, the batteries will still have 80 % of their original capacity, even if you use them every day.* Battery ageing is transparent and can be tracked by the user in the on-board computer at any time.
* Adherence to warranty conditions required. See Deep Blue battery capacity warranty at www.torqeedo.com for more details.
- Low-maintenance system: switching makes sense from as little as EUR 4,600 in annual fuel costs – contact us for more information.
Charger: Advanced engineering from the automotive industry. Waterproof to IP67. The charging rate can be controlled via the display. Each system can support multiple chargers for faster charging when required.Electronic throttle: clean, slick design, with key switch, emergency-stop and neutral lock for safe operation. Power-trim-and-tilt for outboard operation. (See page 60-61 for throttle options)Deep Blue information system on high resolution marine display: touchscreen, waterproof, good sunlight readability. Clean, clearly arranged display of system information.BMW i battery: latest battery generation from BMW i3 and BMW i8 series. Very high energy density, durable, robust, highest level of quality and safety.System Management Unit: Bundles all AC inputs and allows charging from onshore power (while at dock) or from a generator (while at sea). Waterproof to IP67, with integrated water sensor.High-power electric motor: Specially developed for the requirements of the Deep Blue system. Electronically commutated brushless motor with outstanding efficiency (max. 98%). Suitable for salt water cooling.12 V battery: activates the high-capacity battery at each start-up. Supplies 12 V for the onboard network and is automatically charged from the 360 V battery. No additional 12 V charger required.
Deep Blue 50i with 1 x 40 kWh battery
Speed in knots (km/h)* Range in nm (km)* Running time in hh:mm Slow 4.0 (7.5) 31-102 (58-189) 07:45 - 25:30 Full throttle 19-29 (36-54) 16-24 (29-43) 00:50
Deep Blue 25i with 2 x 9.1 kWh batteries
Speed in knots (km/h)* Range in nm (km)* Running time in hh:mm Slow 4.0 (7.5) 29-46 (53-86) 07:00 - 11:30 Full throttle 17-24 (32-44) 13-17 (23-32) 00:45
* Depends on type of boat, load, propeller and conditions. Speed and range indications do not represent a legal guarantee.
Information on range and speed
For a displacement boat making way through the water, the required propulsive power increases in proportion to the cube of the speed. This means that if you want to double your speed, you need eight times as much power.
And vice-versa, a small reduction in speed is enough to increase the achievable range substantially.
The Torqeedo Deep Blue's on-board computer calculates the remaining range constantly, by linking the motor's consumption data with the charging level of the batteries, and the speed over the ground from the GPS. This allows you to read the remaining range in real time from the motor display or the smartphone app TorqTrac.
Technical Data Deep Blue
Deep Blue system Deep Blue 25i 1800 / 1400 rpm Deep Blue 50i 1800 / 1400 rpm 40 HP 80 HP Input power (peak) in kW 63.4 / 66.0 Input power (continuous) in kW 27.6 55.1 Propulsive power in kW > 16.2 > 32.4 Comparable petrol outboard (shaft power) 40 HP 80 HP Maximum overall efficiency in % > 54 > 54 Motor weight without battery, including electronics in kg 80 80 Shaft length / shaft diameter options 30, 35, 40mm | 11/8,11/4'' 30, 35, 40mm | 11/8,11/4'' Maximum propeller speed in rpm 1’800 / 1’400 1’800 / 1’400 Integrated on-board computer with touchscreen display yes yes Liquid Cooling Sea Water, 7 l/min, max. 32°C Sea Water, 7 l/min, max. 32°C BMW i3 battery Nominal voltage 352.3 V Max. continuous performance 55 kW Capacity 42.2 kWh Weight 284 kg Dimensions 1666 x 993 x 173 mm
* preliminary data
Your information material – Deep Blue for sailboats.
You will find all important information about the Deep Blue in our digital brochure. Download the PDF quickly and easily or read it conveniently online while protecting the environment.
Deep Blue for motorboats
Deep Blue i 1800 FAQ
What versions are available?
Outboard: outboard with remote steering and throttle, available as 40- or 80-HP equivalents, various shaft lengths. Models: Deep Blue 25 RL / RXL and Deep Blue 50 RL / RXL.
Outboard with tiller: outboard with tiller for steering and throttle, available as 40- or 80-HP equivalents, various shaft lengths. Models: Deep Blue 25 TL / TXL and Deep Blue 50 TL / TXL.
Inboard: inboard with drive shaft, available as 40- or 80-HP equivalents, various motor speeds. Models: Deep Blue 25 i 1800 / 1800 and Deep Blue 50 i 1800 / 1800.
Sail Drive: sail drive with remote throttle, available as 40 HP equivalent. Models: Deep Blue 40 SD.
When is it worth switching to the Deep Blue?
Switching could make sense for you from as little as EUR 4,600 in annual fuel costs.
Are your fuel costs higher than EUR 4,600 per year? If they are, it might be worth switching to the Deep Blue today. The Deep Blue will in any case protect you from the expected increases in fuel prices. And you will be setting an example for economic reason while showing respect for nature and demonstrating how we can retain mobility in increasingly difficult ecological conditions – more quietly, more cleanly and with greater environmental awareness.
What maintenance is involved?
Transparent maintenance overhead.
An electric drive system requires far less maintenance than comparable drive systems using fossil fuel
What is the warranty?
The Deep Blue has a 2-year warranty from the date of purchase for non-commercial use.
9-year warranty on battery bank
A reliable battery lifespan is key for electric boating economics. That is why the Deep Blue battery comes with a long-term battery capacity warranty: 9 years after commissioning, the batteries will still have 80 % of their original capacity, even if you use them every day.* Battery ageing is transparent and can be tracked by the user in the on-board computer at any time.
* Adherence to warranty conditions required. See Deep Blue battery capacity warranty at www.torqeedo.com www.torqeedo.com for more details.
