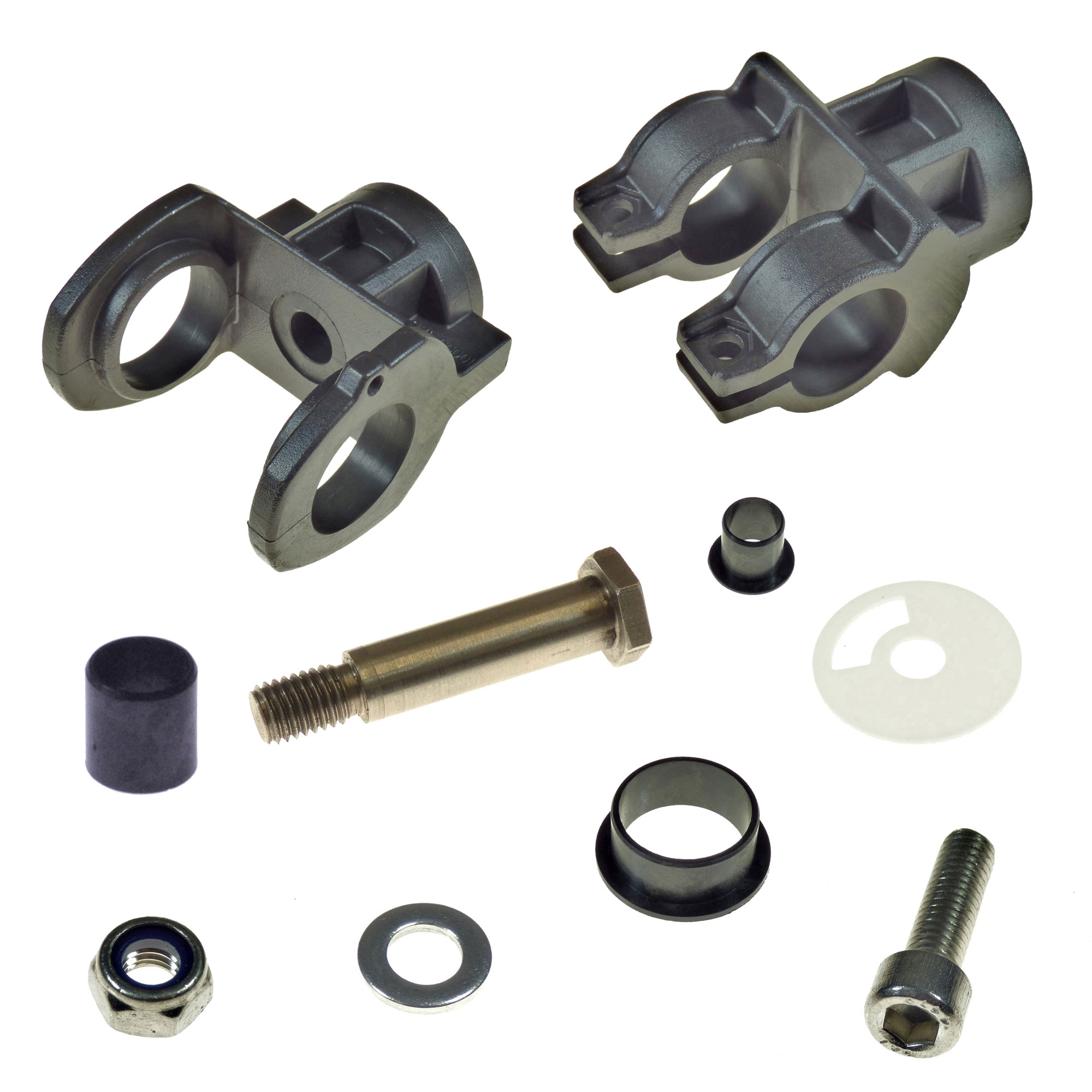

Mounting parts III

Mounting parts III Mounting parts III Mounting parts III
Illustration not true to scale
Torqeedo Hex Bolt (Joint) Torqeedo Hex Bolt (Joint)
Hex Bolt (Joint)
Item number 005-00038
Number in assembly: 1
Torqeedo Joint Vertical Part Torqeedo Joint Vertical Part
Joint Vertical Part
Item number 031-00001
Number in assembly: 1
Torqeedo Joint Horizontal Part Torqeedo Joint Horizontal Part
Joint Horizontal Part
Item number 031-00002
Number in assembly: 1
Torqeedo Bushing w/ Collar 3034-16 Torqeedo Bushing w/ Collar 3034-16
Bushing w/ Collar 3034-16
Item number 043-00007
Number in assembly: 2
Torqeedo Bushing w/ Collar Torqeedo Bushing w/ Collar
Bushing w/ Collar
Item number 043-00008
Number in assembly: 1
Torqeedo Bushing w/o Collar Torqeedo Bushing w/o Collar
Bushing w/o Collar
Item number 043-00009
Number in assembly: 1
Torqeedo Hex Nut ISO4032-M6-A4 Torqeedo Hex Nut ISO4032-M6-A4
Hex Nut ISO4032-M6-A4
Item number 045-00024
Number in assembly: 2
Torqeedo Washer 6.4 A2 DIN125-A Torqeedo Washer 6.4 A2 DIN125-A
Washer 6.4 A2 DIN125-A
Item number 060-00007
Number in assembly: 2
Torqeedo Spacer Joint Torqeedo Spacer Joint
Spacer Joint
Item number 060-00053
Number in assembly: 1
Torqeedo Hex Screw ISO4762-M6x20-A4 Torqeedo Hex Screw ISO4762-M6x20-A4
Hex Screw ISO4762-M6x20-A4
Item number 067-00056
Number in assembly: 2
