Deep Blue 25 RL
For commercial operators and green boaters





Deep Blue 25 RL

For commercial operators and green boaters

Length of Shaft
L
XL



Product description


  • Electric outboard - part of a complete system with modular design for leisure boats and commercial use
  • 25 kW - 40 hp equivalent
  • A synthesis of performance and a perfectly integrated overall system with a ground-breaking safety concept that sets Deep Blue apart from all other electric drive systems on the market
  • All the components of the system are perfectly engineered to match each other and are completely watertight
  • We provide up to 9-year warranty on the Deep Blue's battery capacity with private use
  • Electric boat propulsion is not only powerful and safe, it is also a genuine commercial alternative for heavy users
  • Special tariff from Pantaenius Yacht Insurance with improved insurance protection and lower premiums compared with the normal tariff for boats with other high-voltage drives
  • Transparent maintenance overhead - an electric drive system requires far less maintenance than comparable drive systems using fossil fuel
  • Shaft length: 51 cm (short shaft) / 63.5 cm (long shaft)


Ordering information


  • Item number: 3203-00  | EAN: 4260113693377
  • Equipment included: Outboard drive system (33 kW peak output, 40-hp equivalent) consisting of a complete outboard, connection box, charger, remote throttle, on-board computer with display, cables, long-shaft or short-shaft version (high-voltage battery not included)
  • Warranty: 2 years on the system; up to 9-year warranty on the battery bank - with private use
  • We currently deliver to the following countries


  • California residents please click here for Prop 65 warning






  • Deep Blue 25 R

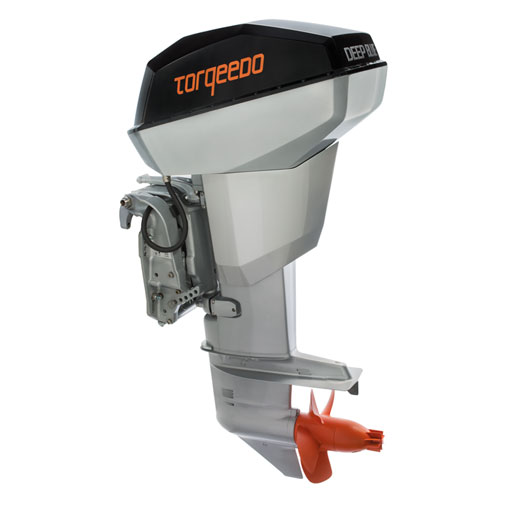

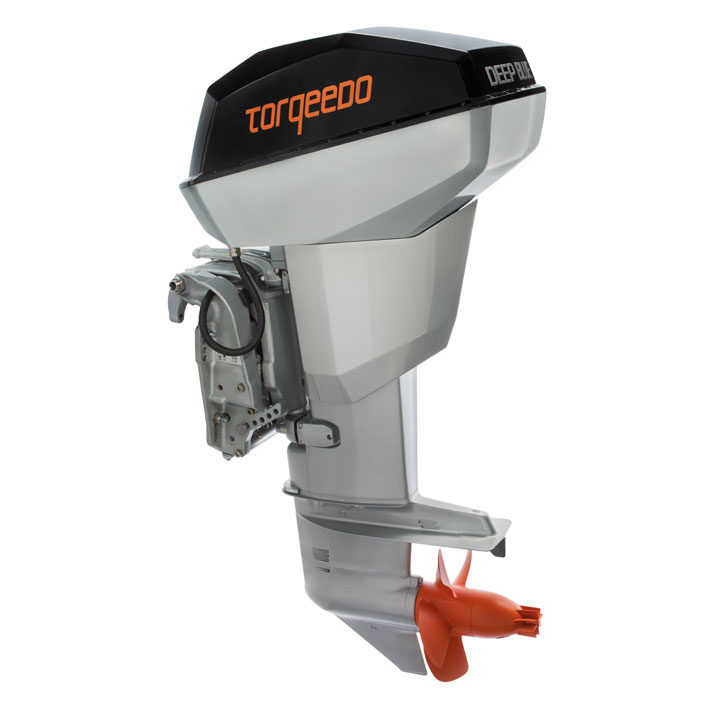

    Torqeedo Deep Blue 40 R Torqeedo Deep Blue 40 R

    It is not just power and performance that make Deep Blue the first of its kind. It is unparalleled performance combined with full system integration and groundbreaking safety levels that set Deep Blue apart from all other electric propulsion systems on the market.

    All the components of the system are perfectly engineered to match each other and are completely waterproof. State-of-the art monitoring technology with pilot lines and insulation monitors safeguard the high-voltage system against the risk of short circuits. The same high-performance lithium batteries used to power cars also power Deep Blue – after we developed them further for use in boats. These and many more safety and performance features make Deep Blue a unique high-voltage propulsion system for electric boats.

    We provide up to 9-year warranty on Deep Blue's battery capacity with private use.


    Deep Blue 25 R - Benefits:

    • Deep Blue: the first high-power propulsion system in serial production - fully integrated system in which all components are designed to match each other seamlessly and to work together perfectly on the water
    • An overall concept that is unique in terms of safety, performance and range
    • Battery life traceability: Battery ageing is transparent and can be tracked by the user in the on-board computer at any time

    High-performance lithium battery with battery management system

    On-board computer with touchscreen
    Electronic remote throttle with key switch and emergency magnetic stop
    System Management Unit
    High-voltage electric motor
    High-capacity lithium battery system
    Charger
    12 V battery




  • Range

    Deep Blue 25 R with a 40 kWh Battery





    Speed in knots (km/h)* Range in nm (km)* Running time in h*
    Slow (2 kW – 6 kW) 5.0 (9.3) 33 - 100 (≈61 - 185) 6.7 - 20
    Full throttle (25 kW) 10 (18.5) 16 (≈30) 1.6

    Deep Blue 25 R with two 9.1 kWh Battery





    Speed in knots (km/h)* Range in nm (km)* Running time in hh:mm*
    Slow 4.0 (7.5) 29 - 46 (53 - 86) 07:00 - 11:30
    Full throttle 17 - 24 (32 - 44) 13 - 17 (23 - 32) 00:45

    * Depends on type of boat, load, propeller and conditions. Speed and range indications do not represent a legal guarantee.

    Information on range and speed

    For a displacement boat making way through the water, the required propulsive power increases in proportion to the cube of the speed. This means that if you want to double your speed, you need eight times as much power.

    And vice-versa, a small reduction in speed is enough to increase the achievable range substantially.

    The Torqeedo Deep Blue's on-board computer calculates the remaining range constantly, by linking the motor's consumption data with the charging level of the batteries, and the speed over the ground from the GPS.





  • Specifications

    Technical Data Deep Blue

    Deep Blue System Deep Blue 25 RL / RXL
    Input power continuous (peak) 27.5 kW
    Mech. Output power at shaft continuous (peak) 25 kW
    Nominal voltage 350 V
    Min. voltage for full performance 330 V
    Contiuous torque / max. torque 129 Nm / -
    Max. shaft rpm 1830 1/min
    Maximum efficiency el. input to mech. output 89%
    Comparable petrol outboards (shaft power) 40 HP
    Maximum overall efficiency 54 %
    Motor weight including electronics and cabling L: 139 kg
    XL: 146 kg
    Dimension L/W/H 868 x 394 x 1,535 mm
    Shaft length L: 20” / 51 cm
    XL: 25“ / 63.5 cm
    Standard propeller Standard high speed propeller:
    Diameter 12,5” /Pitch 15,8” / 5 Blade
    Propeller Mounting Gearcase: 4 ¼ “
    Shaft: 13 teeth
    Max. allowed ambient temperature 45°C
    Max. drive temperature controller / motor 90°C / 130°C
    Cooling Direct water cooling
    Max. inlet temperature 35°C
    Protection Category IP 67
    Conformity IEC 60034-1
    IEC 60349-2
    IEC 60146-1-1
    Tilting and trim device Electric tilt and trim
    Scope of supply Outboard motor
    Cabling
    Standard high speed propeller
    Electric tilt and trim
      Deep Blue Batterie 40
    Nominal voltage 352.3 V
    Max. continuous performance 55 kW
    Capacity (usable) 38 kWh
    Weight 284 kg
    Dimensions 1666 x 993 x 173 mm

    * preliminary data





    Technical Drawing













  • Product brochure

    Infomaterial

    Your information material – Everything at a glance

    You will find all important information about the Deep Blue for motorboats in our digital brochure. Download the PDF quickly and easily or read it conveniently online while protecting the environment.









  • Tips

    Deep Blue R FAQ

    • What versions are available?

      Outboard: Outboard with remote steering, available as 25- or 50 kW / 40- or 80-HP equivalents, various shaft lengths. Models: Deep Blue 25 RL / RXL and Deep Blue 50 RL / RXL.

    • What's the warranty?

      The Deep Blue has a 2-year warranty from the date of purchase for non-commercial use.
